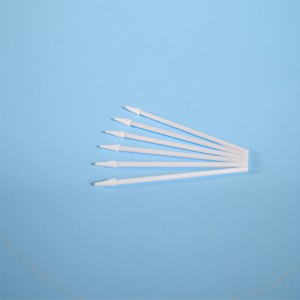

Product Name: ESD Clean Swab
Product Model: PUF-2581A
Purestat® ESD swab has good quality and cleaning capability. It is used for cleaning HDD, optics instrument, wafer, flat panel displays. Swab head possesses good firmness after compressed and the head is sharp. A compact, rigid handle and tapered internal core provide good support. Unique thermal bonding and cleaning process ensure a minimum of particle shedding from foam seal. The swab pole is made by ABS material to provide clean, permanent ESD protection without contributing particulate contaminates to the cleanroom.
- Swab head is made by polyurethane sponge and possesses excellent absorptive capacity.
- Thermal bonding head, no chemical bond contaminations.
- Convenient for cleaning small slotted and grooved areas.
- Good absorbency and excellent solvent hold
- Low nonvolatile residue and particle generation
- No contaminating adhesives
- No silicone oil, Amide and DOP
- Permanent ESD protection without contaminating carbon and humidity-dependent.

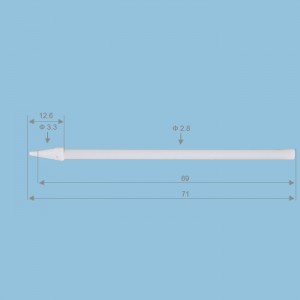

Physical Characteristics
| Swab head material | polyurethane sponge | Swab handle width | 2.54mm |
| Swab head width | 3.3mm | Swab handle length | 75mm |
| Swab head thickness | 3.0mm | Total swab length | 75.5mm |
| Swab head Length | 11.0mm | Swab head bond | thermal bounding |
| Swab pole material | ESD material | Swab pole color | translucent |
Contamination Characteristics
| Nonvolatile residue test result:IPA extractant (ug/swab)DI extractant (ug/swab) | mg/swab≤0.40≤0.15 | IonsChloride (ug/swab)Sulphate (ug/swab)Total anion (ug/swab) | μg/tip≤0.9≤0.4≤1.3 |
| LPC test result: (≥0.5um)Particle counts/swab | < 25,000 |
Electrostatic Discharge characteristics
| Handle resistivity | 1×105 ≤Rs≤1×1010 |
| Triboelectric charge voltage | ＜ 10volts |
| Decay time (±1000v-±10v) | ＜ 2s |
| Swab head material | 100 ppi polyurethane sponge | Swab pole diameter | 3.0 mm |
| Swab head width | 3.3mm | Swab pole length | 60mm |
| Swab head thickness | 3mm | Total swab length | 71.0±0.3mm |
| Swab head Length | 12.6±0.2mm | Swab head bond | thermal bonding |
| Swab pole material | High PP material | Swab pole color | Green/blue |
Contamination Characteristics
| Nonvolatile residue test result:IPA extractant (ug/swab)DI extractant (ug/swab) | mg/swab≤0.40≤0.15 | IonsChloride (ug/swab)Sulphate (ug/swab)Total anion (ug/swab) | μg/tip≤0.9≤0.4≤1.3 |
| LPC test result: (≥0.5um)Particle counts/swab | < 25,000 |

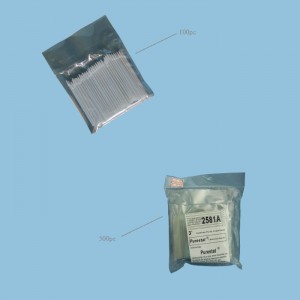

- 100 pc/bag, 170bag/carton
- Carton size: 49*28*49cm, GW: about 19kg
