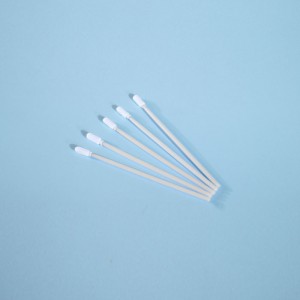

Product Name: ESD Clean Swab
Product Model: PUF-3590A
Purestat® ESD swab have good quality and cleaning capability, it is cleaning room current swab. It use for HDD, optics instrument, medical device or vacuum equipment. This model swab head passed aborative designation, it can cleaning blemish and dust without any mark.. Idiographic hot agglutinate technic and cleaning disposal ensure it didn’t drop dregs. The swab pole is made for high pure polyester material. When use this swab, it didn’t bring contamination and supply abiding ESD protection.
- The swab head passed hot-press, haven’t any bonding contamination.
- Convenient for cleaning small slotted and grooved areas.
- Low volatile residue
- Didn’t contaminated ion, low atom.
- Non silicone oil, Amide and DOP
- Compact ESD-safe handle; Permanent ESd protection.

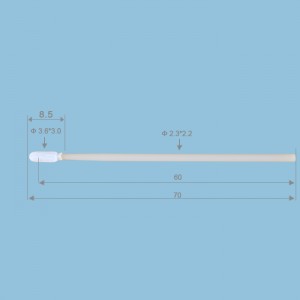

Physical Characteristics
| Swab head material | polyester | Swab pole diameter | 2.3mm |
| Swab head width | 3.5mm | Swab pole length | 60mm |
| Swab head thickness | 3.0mm | Total swab length | 70mm |
| Swab head Length | 8.0mm | Swab head bond | Thermal bonding |
| Swab pole material | ESD material | Swab pole color | translucent |
Contamination Characteristics
| Nonvolatile residue test result:IPA extractant (ug/swab)DI extractant (ug/swab) | mg/swab≤0.40≤0.15 | IonsChloride (ug/swab)Sulphate (ug/swab)Total anion (ug/swab) | μg/tip≤0.9≤0.4≤1.3 |
| LPC test result: (≥0.5um)Particle counts/swab | < 25,000 |
Electrostatic Discharge Characteristics
| Handle resistivity | 1×106 ≤Rs≤1×1010 |
| Triboelectric charge voltage | ＜ 10volts |
| Decay time (1000v-50v) | ＜ 2s |
| Swab head material | 100 ppi polyurethane sponge | Swab pole diameter | 3.0 mm |
| Swab head width | 3.3mm | Swab pole length | 60mm |
| Swab head thickness | 3mm | Total swab length | 71.0±0.3mm |
| Swab head Length | 12.6±0.2mm | Swab head bond | thermal bonding |
| Swab pole material | High PP material | Swab pole color | Green/blue |
Contamination Characteristics
| Nonvolatile residue test result:IPA extractant (ug/swab)DI extractant (ug/swab) | mg/swab≤0.40≤0.15 | IonsChloride (ug/swab)Sulphate (ug/swab)Total anion (ug/swab) | μg/tip≤0.9≤0.4≤1.3 |
| LPC test result: (≥0.5um)Particle counts/swab | < 25,000 |
- 100 swabs/bag, 250bag/box
- Packing box size:460×400×400 mm
